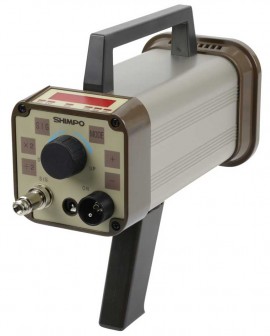

The microprocessor-controlled unit possesses the same great features of the DT-311A with the added convenience of total portability via its own internal power supply with up to one hour of full time, high intensity flash rate. Powered by rechargeable batteries located inside its rugged aluminum housing, it also performs as an AC line-powered strobe when plugged into its standard AC adapter/charger unit.
The microprocessor-controlled unit possesses the same great features of the DT-311A with the added convenience of total portability via its own internal power supply with up to one hour of full time, high intensity flash rate. Powered by rechargeable batteries located inside its rugged aluminum housing, it also performs as an AC line-powered strobe when plugged into its standard AC adapter/charger unit.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
Features
| Flashing Range | 40.0 to 35,000 fpm |
| Accuracy | ±0.01% of reading |
| Resolution | 0.1 fpm: 40.0 to 5,000 fpm / 0.2 fpm: 5,001 to 8,000 fpm 0.5 fpm: 8,001 to 10,000 fpm / 1 fpm: 10,001 to 35,000 fpm |
| Phase Shift | Use +/- push buttons (360° in 6 seconds) |
| Output Signal | Synchronous: 400 µsec. Pulse output: Approx. 0 to 12 VDC amplitude Impedance: 4.7 KΩ |
| Display | 5 digits, 0.4" (10 mm) high, LED |
| Flash Duration | 10 to 40 µsec |
| Sensor Power Supply | 12 VDC (40 mA) |
| Power Requirement | Rechargeable Battery or AC Line Power with included AC adapter |
| Dimensions | 9.84 x 4.72 x 4.72" (250 x 120 x 120 mm) |
