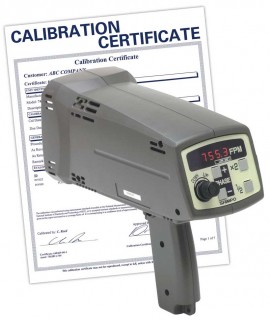

This light weight, highly stable and industrial-quality instrument is excellent for non-contact RPM measurement as well as for inspection and observation of moving parts by “freezing” or “slowing down” the action. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This light weight, highly stable and industrial-quality instrument is excellent for non-contact RPM measurement as well as for inspection and observation of moving parts by “freezing” or “slowing down” the action. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Stroboscopes category for similar products.
Or let's do a search and help you find what you need:
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| Flashing Range | 40.0 to 12,500 fpm |
| Accuracy | ±0.02% of reading |
| Resolution | 0.1 fpm: 40 to 4,999 fpm / 0.2 fpm: 5,000 to 7,999 fpm 0.5 fpm: 8,000 to 9,999 fpm / 1 fpm: 10,000 to 12,5000 fpm |
| Phase Shift | Use +/- push buttons (360° in 6 seconds) |
| Output Signal | NPN open collector (24 VDC max., 50 mA) Typical: 150 µsec |
| Display | 5 digits, 0.3" (8 mm) high, LED |
| Flash Duration | 10 to 15 µsec |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Battery Life | 1 to 2 hours depending on flash rate |
| Power Requirement | Internal Battery Pack: 115 VAC or 220 VAC ±10% 60/50 Hz |
| Dimensions | 7.28 x 4.72 x 4.72" (185 x 120 x 120 mm) |
| Flashing Range | 40.0 to 12,500 fpm |
| Accuracy | ±0.02% of reading |
| Resolution | 0.1 fpm: 40 to 4,999 fpm / 0.2 fpm: 5,000 to 7,999 fpm 0.5 fpm: 8,000 to 9,999 fpm / 1 fpm: 10,000 to 12,5000 fpm |
| Phase Shift | Use +/- push buttons (360° in 6 seconds) |
| Output Signal | NPN open collector (24 VDC max., 50 mA) Typical: 150 µsec |
| Display | 5 digits, 0.3" (8 mm) high, LED |
| Flash Duration | 10 to 15 µsec |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Battery Life | 1 to 2 hours depending on flash rate |
| Power Requirement | Internal Battery Pack: 115 VAC or 220 VAC ±10% 60/50 Hz |
| Dimensions | 7.28 x 4.72 x 4.72" (185 x 120 x 120 mm) |
