Class 1 red laser sensor with a switching frequency of 1.5 kHZ that can be taught to recognize difference in colors. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power.
Class 1 red laser sensor with a switching frequency of 1.5 kHZ that can be taught to recognize difference in colors. Can be used in normally closed or normally open operation, NPN type of output, with a yellow LED for signal indication and a green LED for power.

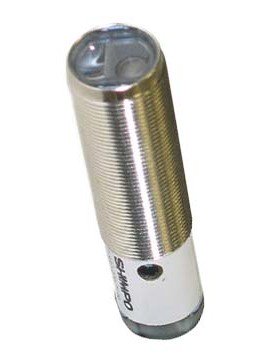

The SHIMPO LS-S50MLR is contained in a metal housing with 6ft of cable, which can be utilized for different operations including stroboscopes, counters and panel tachometers. It includes a trimmer potentiometer that is located on the side for minimum and optimum sensitivity adjustments.
Features
| Sensing Range | 25 – 400 mm |
| Sensing Head | Straight |
| Output | NPN normally open; NPN normally closed; PNP normally open; PNP normally closed |
| Load Current | 200 mA max |
| Voltage Drop | ≤2.5 VDC |
| Short Circuit and Overload Protection | Yes |
| Reverse Polarity Protection | Yes |
| Supply Voltage | 10 – 30 VDC |
| Voltage Ripple | 10% |
| LED Indicator | Yes (2) |
| Current Consumption | ≤30 mA |
| Operating Mode | Light on / Dark on |
| Response Time | ≤1.0 ms |
| Switching Frequency | 500 Hz |
| Standard | EN 60947-5-2 |
| Protection (IEC) | IP67 |
| Light Spot Size | ~0.5 mm at range of 170 mm |
| Ambient Light Resistance | ≤30,000 Lux |
| Working Temperature | -13 to 158°F |
| Storage Temperature | -22 to 158°F |
| Housing Material | INickel-plated brass |
| Light Source | Visible red laser 660 nm |
| Electrical Connection | Quick disconnect |
Click on a category to view a selection of compatible accessories with the SHIMPO LS-S50MLR Reflective Laser Sensor, 1.5kHz.
