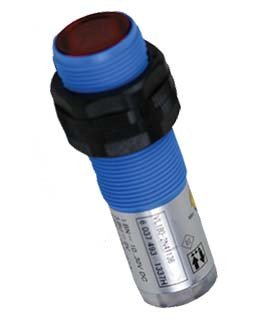

Photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. It comes with a connection cable, LED status indicator, sensitivity control and mounting nuts.
Photo-reflective NPN open collector photo sensor with Light/Dark activated output that operates up to 1000 Hz. It comes with a connection cable, LED status indicator, sensitivity control and mounting nuts.
Features
| Sensor/Detection Principle | Photoelectric retro-reflective sensor |
| Housing Length | 2.5" (62.9 mm) |
| Housing Thread Diameter | M18 x 1 |
| Sensing Range | 2" to 23' (0.05 to 7 m) |
| Light/Source | Visible red LED |
| Light Spot @ Distance 19.7' (6 m) | 15.75" (400 mm) |
| Wave Length | 645 nm |
| Sensitivity Adjustment | Turnable Potentiometer over 270° |
| Supply Voltage | 10-30 V DC |
| Switching Output | NPN open collector, Light/dark-switching, Selectable via L/D control wire |
| Signal Voltage NPN HIGH⁄LOW | Approx. VS ⁄ < 1.8 V |
| Max Output Current | 100 mA |
| Response Time | 0.5ms |
| Switching Frequency | 1,000 Hz with light/dark ratio 1:1 |
| Angle of Dispersion | Ca. 4.5 ° |
| Ambient Operating Temperature | -13 to 131 °F (-25 to 55 °C) |
| Housing Material | PBT and PC |
| Optics Material | PMMA |
| Cable Material | PVC |
| Connection Type | Cable, 4-wire, 6.6' (2 m) |
| Circuit Protection | Inputs and output reverse-polarity protected; outputs overcurrent and short-circuit protected |
| Weight | 2.2oz (62 g) |
| Enclosure Rating | IP 67 |
Click on a category to view a selection of compatible accessories with the SHIMPO MCS-655P Reflective Sensor, 1000 Hz, Plastic Housing.
