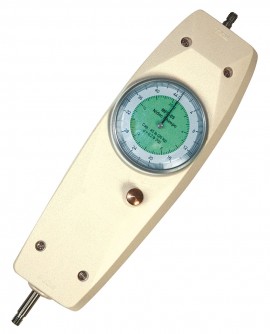

    • SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg)

    Model: MFD-06

    SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg)-

    Downloads: datasheet manual

    SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg)

    Model: MFD-06

    This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control.

    This Mechanical Force Gauge is simple to use, economical, and offers dual kg/lb scales. The peak force operation mode features an easy push-button reset, which is especially helpful for repetitive testing in an assembly line or in quality control.

    Sale Price $299.70 CAD
    Regular Price $324.00 CAD
    Availability 3 Days
    Quantity

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your MFD-06 Dual Scale Mechanical Force Gauge

    Traceable Calibration Certificate Icon

    Traceable Calibration Certificate for your MFD-06 Dual Scale Mechanical Force Gauge

    SHIMPO MFD-06 Offers

    Features

    • Economical mechanical force gauges with dual kg/lb scales are excellent for push/pull force testing in manufacturing, material testing, maintenance and inspection applications
    • Measures tension and compression forces with only one gauge
    • Dual kilogram (kg) and pound (lb) units allows flexible usage in testing to multiple standards
    • Precision gauge movement provides a quick response for instantaneous analysis
    • Large dial indicator allows viewing of force changes as they occur, reducing the chance for parallax errors when taking readings
    • Real Time Mode or Peak Mode enables flexibility to view live readings or maximum values recorded
    • Easy push-button reset is especially helpful for repetitive testing
    • Designed for handheld use, but may also be used with the optional handle - great for loads over 15 pounds (6.8 kg)
    • Rear threaded inserts makes it easy to mount to test stands

    SHIMPO MFD-06 Specifications

    Accuracy ±1% F.S.
    Dial Graduations 0.5 lb (0.5 kg)
    Display Analog 2" (50 mm) diameter dial; rotatable 360° for taring purposes
    Live/Peak Mode Selectable
    Needle Update Immediate
    Threaded Insert 4 on back for mounting inserts
    Overload Capacity 120%
    Weight 1.25 lb (0.57 kg)
    Click here for complete specifications on the SHIMPO MFD-06

    What's included with the SHIMPO MFD-06

    • Mechanical Force Gauge
    • 6 attachments (hook, flat tip, cone tip, chisel tip, notched tip, extension rod)
    • Mounting Screws
    • Carrying Case
    • Calibration Certificate
    datasheet for the SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg) manual for the SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg)

    Click on a category to view a selection of compatible accessories with the SHIMPO MFD-06 Dual Scale Mechanical Force Gauge, 110lb (50kg).

    SHIMPO FG-10TJM6 Thread Adapter, 10/32 UNF to M6 FG-10TJM6
    For use with SHIMPO force gauges and force gauge test stands. Fits onto a part or accessory to adapt one thread size to another and to convert it from male to female or female to male, which allows for a variety of accessories and parts to be attached and swapped.
