Combines a rugged, ergonomic, and compact design to provide a complete force testing instrument. Onboard statistical calculations provide fast access to maximum, minimum, average, and standard deviation data, and 1000 point memory allows for data exporting in real-time or after testing is complete. Features a capacity of 10 lbs, and a resolution of 0.01 lb.
Combines a rugged, ergonomic, and compact design to provide a complete force testing instrument. Onboard statistical calculations provide fast access to maximum, minimum, average, and standard deviation data, and 1000 point memory allows for data exporting in real-time or after testing is complete. Features a capacity of 10 lbs, and a resolution of 0.01 lb.
Features
Applications
| Capacity | 10 lbs 5.000 Kg 50.00 N |
| Resolution | 0.01 lb 0.001 Kg 0.01 N |
| Accuracy | ±0.2% F.S. |
| Display | 4-digit LCD, 0.5" (12 mm) high, units 0.29" (7 mm). Reversible by the push of a button. Minus sign for tension |
| Display Update | 0.05, 0.1, 0.2, 0.3, 0.5, 1 sec |
| Sampling Rate | 1000 Hz |
| Overload | 150% F.S. |
| Power | Rechargeable Ni-Cad battery or AC adapter/charger |
| Output | Analog: ±1 VDC (through a 12 bit D/A converter) RS232C: Baud rate (19200, 9600, 4800, 2400 bps selectable), commands control USB: Allows communication between FGV-XY and Windows® PC Software with Toriemon USB via USB cable Overload comparator: Open-collector output (Max DC30V/5mA) |
| Auto Power Shut-Off | Yes (not active if adapter/charge is in use) |
| Battery Charge | 12 hours (when fully charged) |
| Recharge Time | Approximately 18 hours when fully discharged |
| Temperature Range | 32 to 104°F (0 to 40°C) |
| Dimensions | 5.8 x 3 x 1.5" (147 x 75 x 38 mm) |
| Weight | Approximately 1.1 lb (500 g) |
| Certification | CE |
A global manufacturer of automotive tires contacted Nidec-Shimpo in search of a solution to help with a new process in their manufacturing.

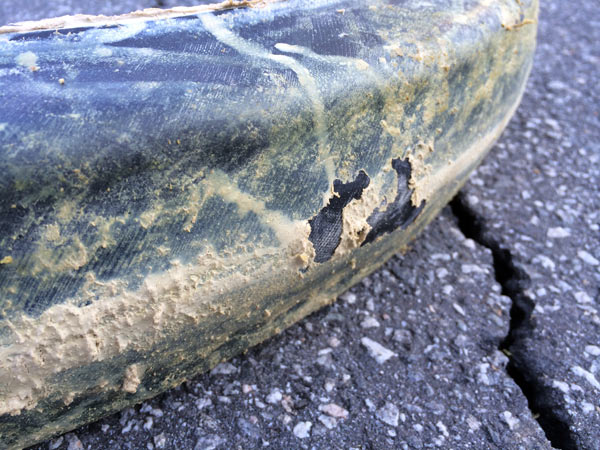

The engineering team was in need of a simple method to determine the amount of force required by an operator to completely remove the tire's internal sealant after they come off the production line.
In order to simulate the human action of removing the sealant from the tire, it was recommended that they use a force test stand with mounted force gauge. They chose the FGS-220VC motorized test stand along with an FGV-10XY 10 lb (5 kg) capacity data-logging digital force gauge.
FGV-10XY

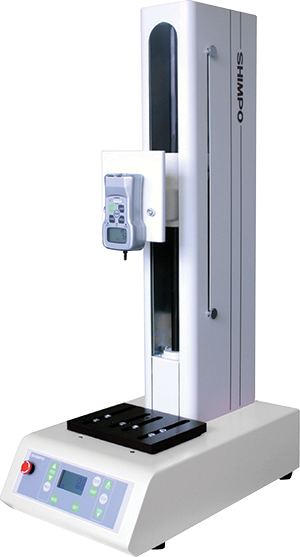

FGS-220VC

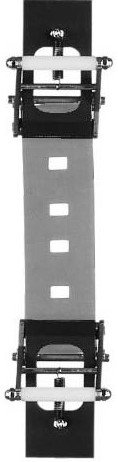

FG-M6TAP30U
The object of the test was to simulate an operator removing the inner sealant by measuring the amount of force necessary to separate and remove the sealant from the inside of the tire. Utilizing the FG-M6TAP30U tape grip connected to the force gauge, the simulation was achieved with a piece of tape affixed on the sealant inside the tire. By determining the point at which the tape/sealant broke away from the tire, enabled them to determine the level of force a worker would have to apply to remove the sealant during the production process.
As a result of the testing, it was determined that approximately 8 pounds of force (3.6 kg) would be required to remove this substance from inside of the tires, well within the acceptable range a normal worker can routinely achieve and not have long term effects.
Click on a category to view a selection of compatible accessories with the SHIMPO FGV-10XY Digital Force Gauge, 10 lbs.
